Application- 15 : Creating a Struts Application by using DynaValidationForm

Create a Application by using DynaValidationFrom

In this chapter, you create a new application and provide validation in it from validation.xml file. DynaValidationForm class extends DynaActionForm and provides basic field validation based on an XML( validation.xml  and validator- rules.xml)  files. In which, the key passed into the validator is the action element's 'name' attribute from the  <form-property> in struts-config.xml which should match the form element's name attribute in the validation.xml.

Validator-rules.xml file contained in struts-core.jar, and should be referenced in the struts-config.xml under the plug-in element for the ValidatorPlugIn. Important point is that NetBean IDE automatic configure the Validatior and Tiles and also plugin these resource into struts-config.xml file.  Once you have configured the Validator Plug-In, so that it can load your Validator Resources you just have to extend org.apache.struts.validator.action.ValidatorForm instead of org.apache.struts.action.ActionForm. Then when the Validate method is called, the action's name attribute from the struts-config.xml is used to load the validations for the current form. So the form element's name attribute in the validator-rules.xml should match action element's name attribute.

For each piece of the application, we show you the code and then explain the code. This application design in NetBeans IDE- 6.8  with Struts 1.3.

Requirement  for your struts application-

  • At least one view component is required in every Application.
  • A subclass of ActionForm is used to submit the date as application needed.
  • A subclass of Action class which provide specific processing functionality for the application.
  • A web.xml file is required for calling ActionServlet and struts-config.xml.
  • A struts-config.xml file is required for updating and mapping the update.

Let's Start the application, this application provide a good understanding how struts framework works and also understanding the development of Struts applications.

Now, Following the some steps for develop your first application name as ValidationEx_2. ValidationEx_2 application contain following page-

  • Three View file name as index.jsp and success.jsp
  • One DynaValidatorForm class name as a RegisterForm, used for store data as application need.
  • One Action class name as RegisterAction.java, used for provide specific processing functionality.
  • Two XML file name as web.xml and struts-config.xml file, used for provide control, mapping and validation in application.

Step- 1 : Start your IDE ( NetBeans 6.8 with struts 1.3).

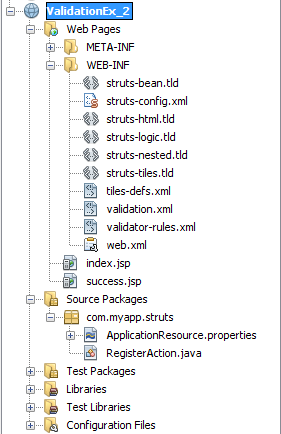

Step- 2 : Open a new project( Crtl+Shift+N), name it , add server( Apache Tomcat 6.0.20 ), then add struts framework 1.3 , and don't forget to add Struts TLDs.
               When you click Finish button, your NetBeans IDE configure everything in place and project open in your IDE.

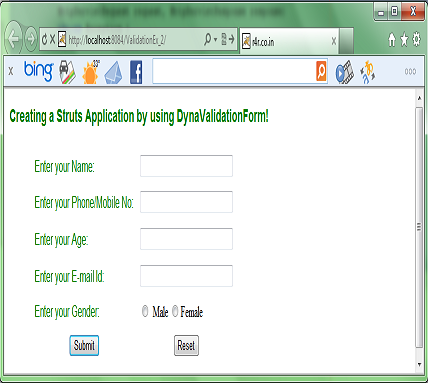

Step- 3: Open index.jsp page, from your struts application and code it as describe below.


<%--
    Document    : index.jsp
    Description : First Page of ValidationEx_2 Application
--%>

<%@page contentType="text/html"%>
<%@page pageEncoding="UTF-8"%>

<%@ taglib uri="http://struts.apache.org/tags-bean" prefix="bean" %>
<%@ taglib uri="http://struts.apache.org/tags-html" prefix="html" %>
<%@ taglib uri="http://struts.apache.org/tags-logic" prefix="logic" %>

<html:html lang="true">
    <head>
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
        <title><bean:message key="welcome.title"/></title>
        <html:base/>
    </head>
    <body style="background-color: white">
        <html:form action="/register" onsubmit="return validateRegisterForm(this)">

             <%-- =========== Add JavaScript error into JSP page ============ --%>
            <html:javascript formName="RegisterForm" />

            <%-- ================================================ --%>
            <h3><bean:message key="welcome.heading"/></h3>

            <ul>
                <table border="0" cellspacing="4" cellpadding="4">
                    <tbody>
                        <tr>
                            <td><bean:message key="welcome.name" /></td>
                            <td><html:text property="name" size="25" /></td>
                        </tr>
                        <tr>
                            <td><bean:message key="welcome.number" /></td>
                            <td><html:text property="number" size="25" /></td>
                        </tr>
                        <tr>
                            <td><bean:message key="welcome.age" /></td>
                            <td><html:text property="age" size="25" /></td>
                        </tr>
                        <tr>
                            <td><bean:message key="welcome.email" /></td>
                            <td><html:text property="email" size="25" /></td>
                        </tr>
                        <tr>
                            <td><bean:message key="welcome.gender"/></td>
                            <td><html:radio property="gender" value="male" /> Male
                                <html:radio property="gender" value="female" />Female </td>
                        </tr>
                        <tr>
                            <td align="center"><html:submit /></td>
                            <td align="center"><html:reset /></td>
                        </tr>
                    </tbody>
                </table>
            </ul>
        </html:form>
    </body>
</html:html>

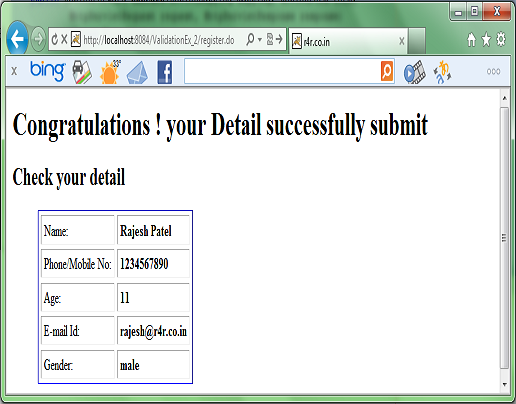

Step- 4: Open success.jsp page, from your struts application and code it as describe below.


<%--
    Document    : success.jsp
    Description : Second Page of ValidationEx_2 Application
--%>

<%@page contentType="text/html"%>
<%@page pageEncoding="UTF-8"%>

<%@ taglib uri="http://struts.apache.org/tags-bean" prefix="bean" %>
<%@ taglib uri="http://struts.apache.org/tags-html" prefix="html" %>

<html:html lang="true">
    <head>
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
        <title><bean:message key="welcome.title"/></title>
    </head>
    <body style="background-color: white">
        <h1>Congratulations ! your Detail successfully submit</h1>
        <h2> Check your detail</h2>
        <ul>
            <table border="1" cellspacing="4" cellpadding="4" style="border-bottom-style: groove; border-color: blue">
                <tbody>
                    <tr>
                        <td> Name: </td>
                        <td><b><bean:write name="RegisterForm" property="name" /></b></td>
                    </tr>
                    <tr>
                        <td> Phone/Mobile No: </td>
                        <td><b><bean:write name="RegisterForm" property="number" /></b></td>
                    </tr>
                    <tr>
                        <td> Age: </td>
                        <td><b><bean:write name="RegisterForm" property="age" /></b></td>
                    </tr>
                    <tr>
                        <td> E-mail Id: </td>
                        <td><b><bean:write name="RegisterForm" property="email" /></b></td>
                    </tr>
                    <tr>
                        <td> Gender: </td>
                        <td><b><bean:write name="RegisterForm" property="gender" /></b></td>
                    </tr>
                </tbody>
            </table>
        </ul>
    </body>
</html:html>

Step- 5: Open web.xml file place in WEB-INF folder, this file is used to map the ActionServlet( work as backbone of application, every Action, Validation and ActionForm class control by this
 class) , struts-config.xml file, welcome file and five different TagLibrary.

<!-- Save as a web.xml-->
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
    <servlet>
<!-- ActionServlet map here, however you can't find this class within the project but it work as a backbone of the project -->
        <servlet-name>action</servlet-name>
        <servlet-class>org.apache.struts.action.ActionServlet</servlet-class>
<!-- Your struts-config.xml file map here-->
        <init-param>
            <param-name>config</param-name>
            <param-value>/WEB-INF/struts-config.xml</param-value>
        </init-param>
        <init-param>
            <param-name>debug</param-name>
            <param-value>2</param-value>
        </init-param>
        <init-param>
            <param-name>detail</param-name>
            <param-value>2</param-value>
        </init-param>
        <load-on-startup>2</load-on-startup>
    </servlet>
<!-- Action class map with URL -->
    <servlet-mapping>
        <servlet-name>action</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>
    <session-config>
        <session-timeout>
            30
        </session-timeout>
    </session-config>
<!-- Welcome file map here: -->
    <welcome-file-list>
        <welcome-file>index.jsp</welcome-file>
    </welcome-file-list>
    <jsp-config>
<!-- All the Tag Library which used with in the project -->
        <taglib>
            <taglib-uri>/WEB-INF/struts-bean.tld</taglib-uri>
            <taglib-location>/WEB-INF/struts-bean.tld</taglib-location>
        </taglib>
        <taglib>
            <taglib-uri>/WEB-INF/struts-html.tld</taglib-uri>
            <taglib-location>/WEB-INF/struts-html.tld</taglib-location>
        </taglib>
        <taglib>
            <taglib-uri>/WEB-INF/struts-logic.tld</taglib-uri>
            <taglib-location>/WEB-INF/struts-logic.tld</taglib-location>
        </taglib>
        <taglib>
            <taglib-uri>/WEB-INF/struts-nested.tld</taglib-uri>
            <taglib-location>/WEB-INF/struts-nested.tld</taglib-location>
        </taglib>
        <taglib>
            <taglib-uri>/WEB-INF/struts-tiles.tld</taglib-uri>
            <taglib-location>/WEB-INF/struts-tiles.tld</taglib-location>
        </taglib>
    </jsp-config>
</web-app>

Step- 6: Open struts-config.xml  file place in WEB-INF folder, this file is used to map Model class, Exception class, Validation class, Action class( Action class further choose View class) and
ApplicationResource class.


<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE struts-config PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 1.3//EN"
"http://jakarta.apache.org/struts/dtds/struts-config_1_3.dtd">


<struts-config>
    <form-beans>
        <form-bean name="RegisterForm" type="org.apache.struts.validator.DynaValidatorForm" >
            <form-property name="name" type="java.lang.String" />
            <form-property name="number" type="java.lang.Integer" />
            <form-property name="age" type="java.lang.Integer" />
            <form-property name="email" type="java.lang.String" />
            <form-property name="gender" type="java.lang.String" />
        </form-bean>
    </form-beans>

    <global-exceptions>

    </global-exceptions>

    <global-forwards>

    </global-forwards>

    <action-mappings>
        <action input="/index.jsp" name="RegisterForm" path="/register" scope="request" type="com.myapp.struts.RegisterAction">
            <forward name="success" path="/success.jsp"/>
            <forward name="failure" path="/index.jsp"/>
        </action>

    </action-mappings>

    <controller processorClass="org.apache.struts.tiles.TilesRequestProcessor"/>

    <message-resources parameter="com/myapp/struts/ApplicationResource"/>

    <!-- ========================= Tiles plugin ===============================-->

    <plug-in className="org.apache.struts.tiles.TilesPlugin" >
        <set-property property="definitions-config" value="/WEB-INF/tiles-defs.xml" />
        <set-property property="moduleAware" value="true" />
    </plug-in>

    <!-- ========================= Validator plugin ================================= -->
    <plug-in className="org.apache.struts.validator.ValidatorPlugIn">
        <set-property
            property="pathnames"
            value="/WEB-INF/validator-rules.xml,/WEB-INF/validation.xml"/>
    </plug-in>

</struts-config>

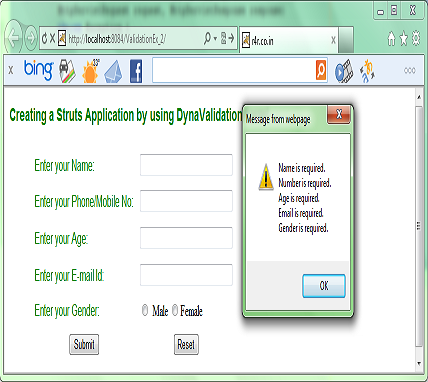

Step- 7: Open validation.xml file place into WEB-INF folder, this file used to provide the validation as well as error in JSP page of application, this( validation.xml)  file call by struts-cofig.xml file as we define earlier.


<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE form-validation PUBLIC
"-//Apache Software Foundation//DTD Commons Validator Rules Configuration 1.1.3//EN"
"http://jakarta.apache.org/commons/dtds/validator_1_1_3.dtd">

<form-validation>

    <!--
     This is a minimal Validator form file with a couple of examples.
-->

    <global>

        <!-- An example global constant
        <constant>
            <constant-name>postalCode</constant-name>
            <constant-value>^\d{5}\d*$</constant-value>
        </constant>
        end example-->

    </global>

    <!-- Add Validation into JSP page in ValidationEx_2 application -->
    <formset>
        <form name="RegisterForm" >
            <field property="name" depends="required">
                <arg0 key="RegisterForm.name" />
            </field>

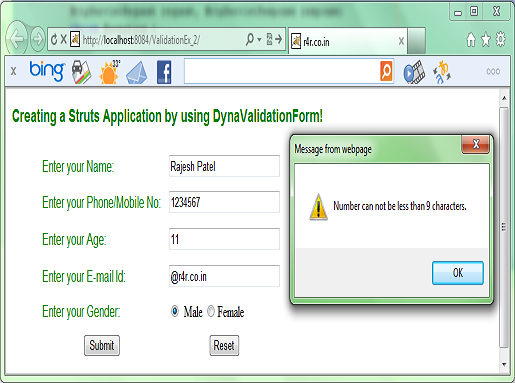

            <field property="number" depends="required,minlength">
                <arg0 key="RegisterForm.number" />
                <arg1 key="${var:minlength}" name="minlength" resource="false" />
                <var>
                    <var-name>minlength</var-name>
                    <var-value>9</var-value>
                </var>
            </field>

            <field property="age" depends="required,intRange">
                <arg0 key="RegisterForm.age" />
                <arg1 key="${var:min}" name="intRange" resource="false" />
                <arg2 key="${var:max}" name="intRange" resource="false" />
                <var>
                    <var-name>min</var-name>
                    <var-value>11</var-value>
                </var>
                 <var>
                    <var-name>max</var-name>
                    <var-value>60</var-value>
                </var>
            </field>

            <field property="email" depends="required,email" >
                <arg0 key="RegisterForm.email" />
                <arg1 key="${var:email}" name="email" resource="false" />
                <var>
                    <var-name>email</var-name>
                    <var-value>^([a-bA-B0_9]*@([A-Za-b0-9])+(\\.com)||(\\.net)||(\\.co.in)$)</var-value>
                </var>
            </field>

            <field property="gender" depends="required" >
                <arg0 key="RegisterForm.gender" />
            </field>
        </form>
    </formset>

</form-validation>

Step- 8: Open validator-rules.xml file place into WEB-INF folder, file used to define the rule of validation set up by validation.xml file and error mapping into ApplicationResource.properties file.
This( validator-rules.xml) file is also define for the custom error message.

Step- 9: Now introduce Bean class into struts-config.xml file, Since In this application we used DynaValidationForm which extend DynaActionForm so, no need to make another Bean/Form class.

Step- 8: Introduce Action class in to struts-config.xml file, as we define in our first application, that Netbean IDE able to configure your action class in struts-config.xml file.

/*
 * Save as a RegisterAction.java
 * Action Class Of ValidationEx_2 application
 */
package com.myapp.struts;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionForward;
import org.apache.struts.action.ActionMapping;
import org.apache.struts.validator.DynaValidatorForm;


public class RegisterAction extends org.apache.struts.action.Action {

    /* forward name="" path="" */
    private static final String SUCCESS = "success";

    /**
     * This is the action called from the Struts framework.
     */
    @Override
    public ActionForward execute(ActionMapping mapping, ActionForm form,
            HttpServletRequest request, HttpServletResponse response)
            throws Exception {

        DynaValidatorForm validatorForm = (DynaValidatorForm) form;

        String name = (String) validatorForm.get("name");
        Integer number = (Integer) validatorForm.get("number");
        Integer age = (Integer) validatorForm.get("age");
        String email = (String) validatorForm.get("email");
        String gender = (String) validatorForm.get("gender");


        return mapping.findForward(SUCCESS);
    }
}

Run your application:

           Now your application is complete, so now start run your application. Start your server( which you embedded when configure our struts application), then right click your application and click upon Run option or open your welcome( index.jsp) page and press shift+F6.

Check Validation into JSP page, JavaScript call due to used  <html:javascript formName="RegisterForm" />  tag into JSP page.


previous

Home

Next

New Updates
R4R
R4R
R4R
R4R
R4R
R4R
R4R
R4R
   Career || ASK Question || Placement Papers || Interview Question || Mini Project || Aptitude Paper || HR Q&Ans || ContactUS || Post Comments || Read Comments
